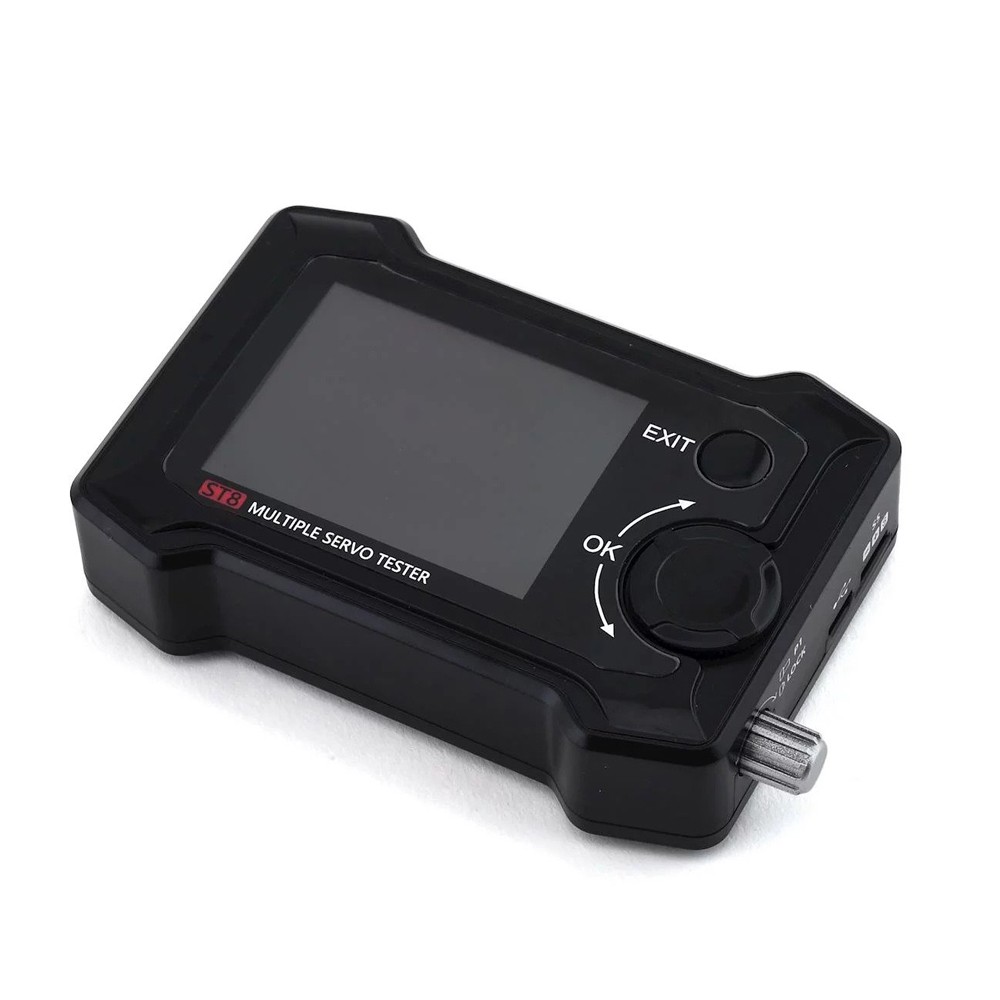

ToolKitRC ST8 Servo tester

The ToolkitRC ST8 Advanced Multi-Servo Tester is a compact charger that boasts a wide array of features not found in chargers on the market. It includes multiple input sources, programmable 8-channel output signal, multiple measurement modes, 4 independent current acquisitions and much more!

Features

• The ST8 is a product for testing servos, with up to 28V voltage output, 8-channel signal output, current measurement, curve display, and other functions.
• 4 channels of programmable independent signal, 8 channels of signal output, the accuracy of 1 ms.
• 4 independent current acquisition, respectively, curved display.
• Multiple measurement modes (speed, count, step, linear).
• output PWM signals with a period of 33 to 1000 Hz.
• A variety of signal trigger sources (internal, buttons, knobs, external sources).
• Measure the response speed of the steering gear with an accuracy of 1 millisecond.
• The external input signal supports PWM/ PPM/ SBUS with an accuracy of 1 ms.
• Drive the servo with a maximum load of 100W.
• With the multi-language system, you can upgrade the language you need.
• The device is simulated as a USB flash drive, and the upgrade file is copied to implement a product firmware upgrade.
