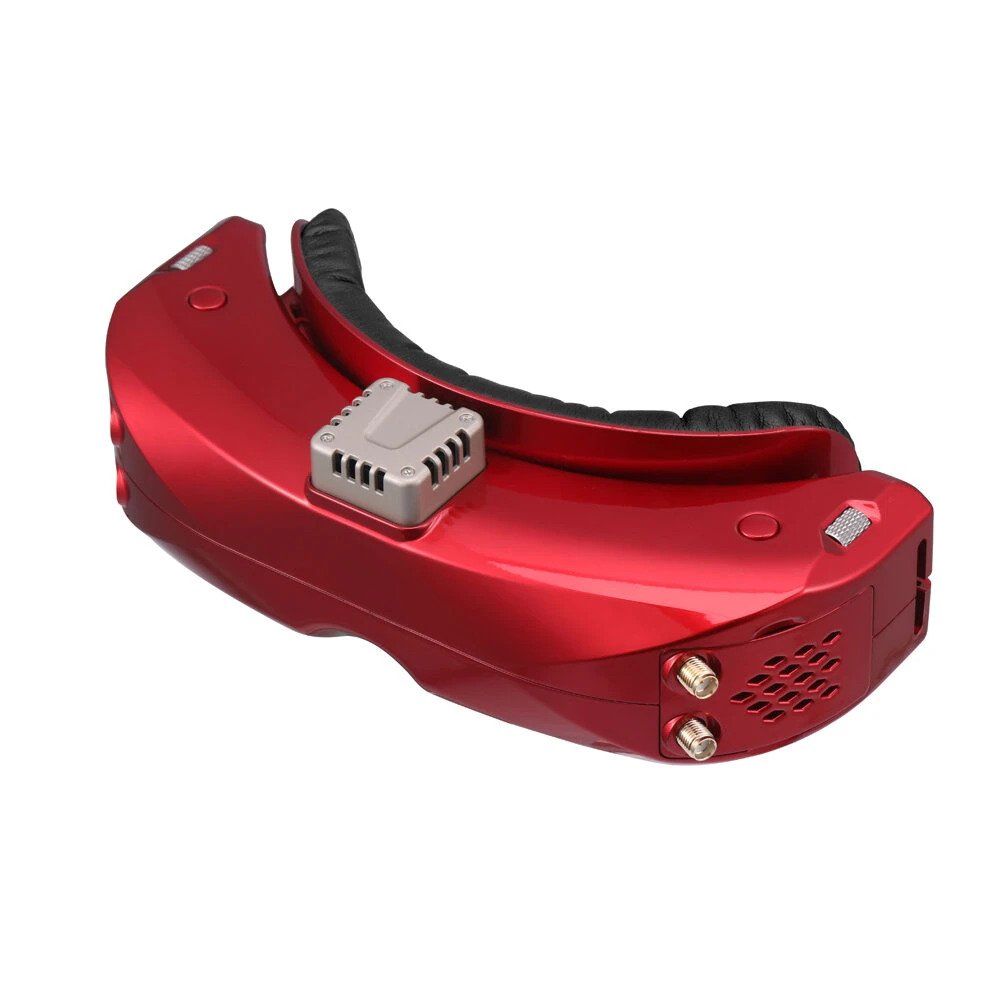

SkyZone SKY04X V2 FPV Goggles - Red
| Model: | SKYZ_SKY04X_V2_red |
|
|
|
Description
The SKY04X V2 is the first Skyzone goggle with focus adjustment. The 1280*960 high-resolution screen has vivid color and a high contrast ratio, enabling the pilot to see more details while racing. With Steadyview receiver, the receiver merges two signals to one, avoid image tearing and rolling, make the image more stable and clear in challenging condition.
The new OS has 10 languages to set select, the menu system is easy to navigate. The shuttle wheel and new user interface allow the pilot to set all the settings just by rolling the wheel without taking off the goggles. The newly designed optics have a focus adjustment feature and 46 degrees field of view, giving pilots a more immersive FPV experience.
The SKY04X V2 now features an updated 60FPS DVR unit!
Advanced Screen Settings
46° Field of View Angle
Shuttle Wheel Control
SteadyView Receiver
Focus Adjustment
60FPS DVR Unit
10 Languages
New UI
Parameters
| Radio frequency | 5.8 GHz |
| DVR | H264,60fps, MOV6Mbps, SD Card support up to128Gb |
| Head Tracker | 3-axis Accelerometer, 3-axis gyroscope |
| Receiver | 5.8Ghz 48CH Steadyview Receiver |
| Interpupillary distance(IPD) | 58-71mm |
| Power Supply | DC6.5-25.2V/USB5V |
| Power Consumption | 720mAat12V |
| Dimensions | 185*75*67mm |
| Language | 10 Language |
| Focus | -6~+6 adjustable |
| Resolution | 1280X960 |
| Aspect Ratio | 4:3/16:9 |
| FOV (Diagonal) | 46° |
| Screen | OLED |
| Weight | 267g |
Package included
1x Skyzone SKY04X V2 Goggles - White
1x Sponge Padding Set with velcro
1x Steadyview Receiver Module
2x Faceplate (wide and narrow)
1x Skyzone Goggle Strap
2x 5.8GHz 2dB Antennas
1x Video/Audio Cable
1x Headtracker cable
1x USB-C Cable
1x User Manual
1x Power cable
1x Zipper case
