Caddx Nebula Pro Vista Kit 720p/120fps Low Latency HD Digital FPV System Black

Price:
212.77 EUR
Manufacturer:
Model: HP070-0045-B

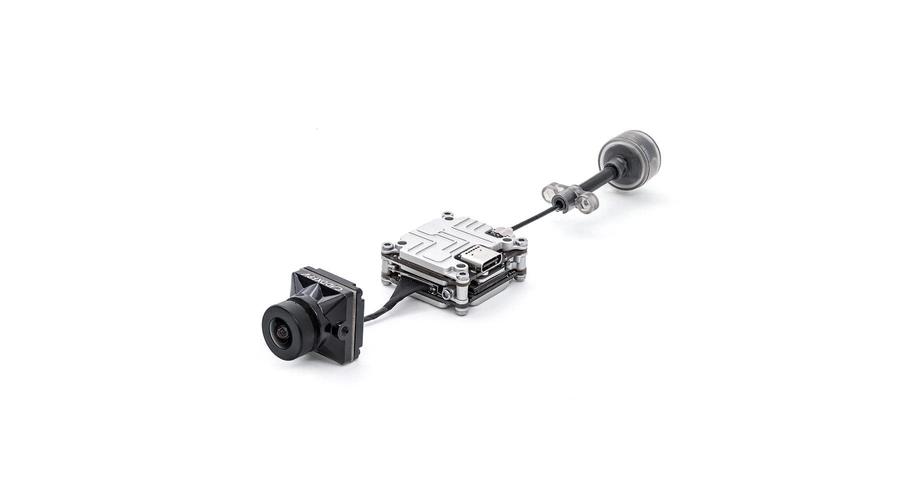

The Caddx Nebula Pro Vista Kit 720p/120fps Low Latency HD Digital FPV System is the next generation Vista set with new and improved Nebula Pro camera.
camera cover color
aspect ratio: 4: 3/16: 9 switchable
Qty:db

Description

The Caddx Nebula Pro Vista Kit 720p/120fps Low Latency HD Digital FPV System is the next generation Vista set with new and improved Nebula Pro camera.

The Caddx Nebula Pro Digital FPV Camera Kit is another advanced video transmission module by Caddx and fully authorized by DJI that supports a 5.8GHz digital video signal and 720p 120fps image transmission. The Caddx Nebula Pro with Vista is designed for FPV drones and it can be used with DJI FPV Goggles, which provide digital high-definition picture and a transmission range up to 4km. The Vista system allows up to eight drones to fly simultaneously. Each operator has an exclusive channel, which helps reduce cross-interference and provides an optimal racing experience.

User can wirelessly connect their Vista Kit to the DJI FPV Remote Controller and DJI FPV Goggles without having to purchase additional receivers, as well mount on racing drones!

Parameters

Model Vista Kit (Nebula Pro)
Weight Camera included:27g/Antenna:2.5g
Dimensions
Vista Kit 30x29x13mm
Camera 19x19x20mm
Coaxial Cable 80mm/120mm
Operating Frequency 5.725-5.850GHz
Transmitter Power(EIRP) FCC/SRRC/MIC:<30dBm, CE:<14dBm
Min. Latency (end-to-end)
Low Latency 720p 120fps 12-28ms
High Quality Mode 720p 60fps:30-40ms
Max. Transmission Distance FCC/SRRC:4km, CE:0.7km
I/O Interface USB-C,IPEX,3-in-1 Port
Supported Flight Control System F3,F4,F7
Operating Temperature Range 32° to 104° F (0℃ ~40℃)
Input Power 7.4-26.4V
Power output 25mW/200mW/500mW/700mW
Hardware included Vista/Nebula nano/Coaxial cable/Antenna
Goggles work with DJI goggles
Camera Sensor:1/3''CMOS
Lens 2.1mm,f/2.1
Shutter Rolling shutter
FOV 150°[D],122°[H],93°[V]

Csomag tartalma

1 x Caddx Nebula Pro Vista Kit 720p/120fps Low Latency HD Digital FPV System
