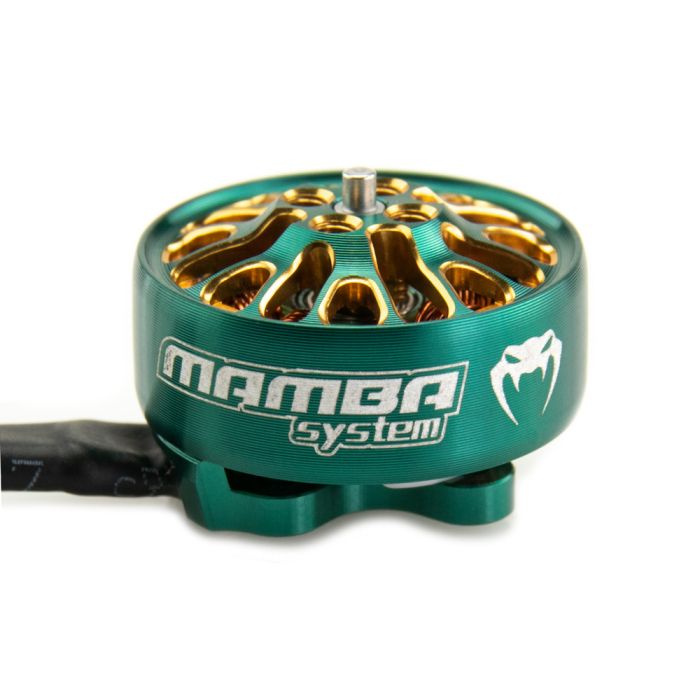

Description
Overall Dimension:Φ20.5×15mm
prop mounting shaft diameter:1.5mm
Installation hole position:12×12mm,M2
Prop: 2.5inch~4inch(Toothpick)
Bearing: 5*2*2.5
Shaft Diameter:2mm
Lead Wire Size:24AWG×150mm
slots/poles:9N12P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter:14mm
Stator Height:4mm
Rated Voltage:3S~4S (12.6V~16.8V)
Peak Current: 13.48A
ldle Current:10V/0.5~1.2A
Maximum Power: 215.6W
Internal Resistance:175mΩ
Weight: 10.5g
Parameters
Motor stator size | 1404 |
voltage | 3-4 cell (11.1V-14.8V) |
Overall Dimension | Φ20.5×15mm |
prop mounting shaft diameter | 1.5mm |
Installation hole position | 12×12mm,M2 |
Prop | 2.5inch~4inch(Toothpick) |
Bearing: 5*2*2.5 | |
Shaft Diameter | 2mm |
Lead Wire Size:24AWG×150mm | |
slots/poles | 9N12P |
Magnet Wire | 240℃ Enameled Wire |
Stator Diamter:14mm | |
Stator Height | 4mm |
Rated Voltage | 3S~4S (12.6V~16.8V) |
Peak Current | 13.48A |
ldle Current:10V/0.5~1.2A | |
Maximum Power | 215.6W |
Internal Resistance:175mΩ | |
Weight | 10.5g |
