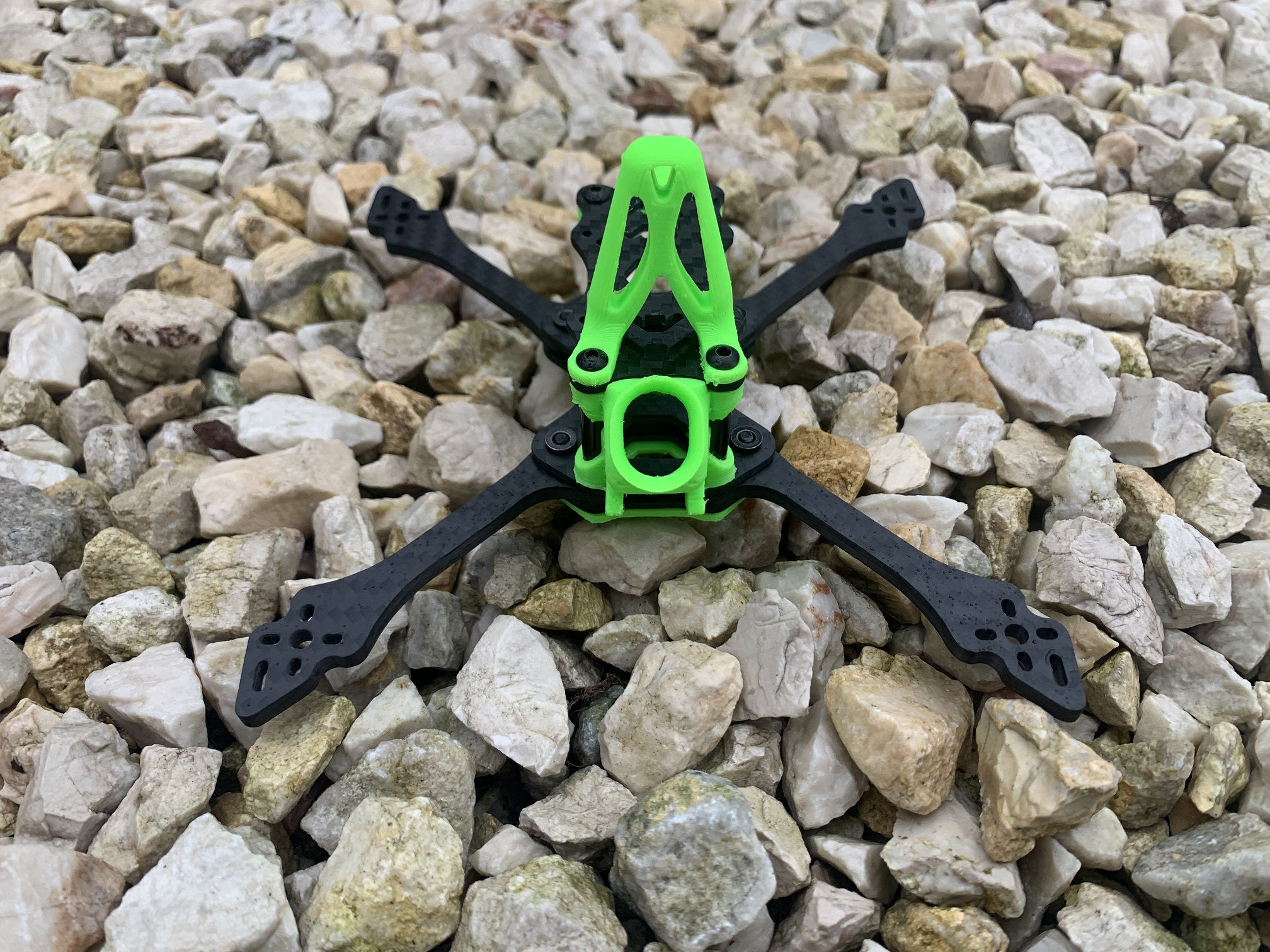

The Blade frame is designed and manufactured by the CCarbon workshop for racing and freestyle flights due to its light weight.
The frame is produced in-house from 3K carbon sheets with flat-bed CNC milling technology.
One of the great advantages of domestic production is that the necessary parts can be procured within 1-2 days.
The frame is designed and built for 20*20 flight and motor control.
The first frame of the CCarbon workshop, which was prepared to receive a Walksnail VTX unit!
Only 14 mm wide can be installed from the camera.
The frame comes with a fin and a micro Lollipop antenna holder.
Length: 150 mm
Width: 140 mm
Base height: 35 mm (without fins)
Motor-motor distance: 121 mm
For diagonal axis: 172 mm
Acceptable motor diagonal: 9-12 mm
Height of spacers: 25 mm
Arm thickness: 4 mm
Bottom, mid and top plate thickness: 2 mm
The assembled weight of the frame without TPU parts: 50 g
The weight of the basic TPU parts for the frames is approximately: 5 g
Recommended propeller size: 4"
|Dimensions (Length * Width * Height)||150x140 mm|
|Mounting pattern||20x20 mm (micro)|
|Váz formája||True X|
